| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

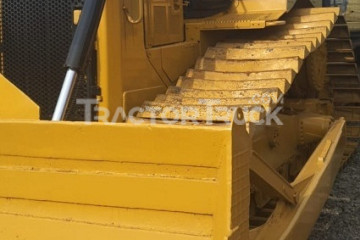

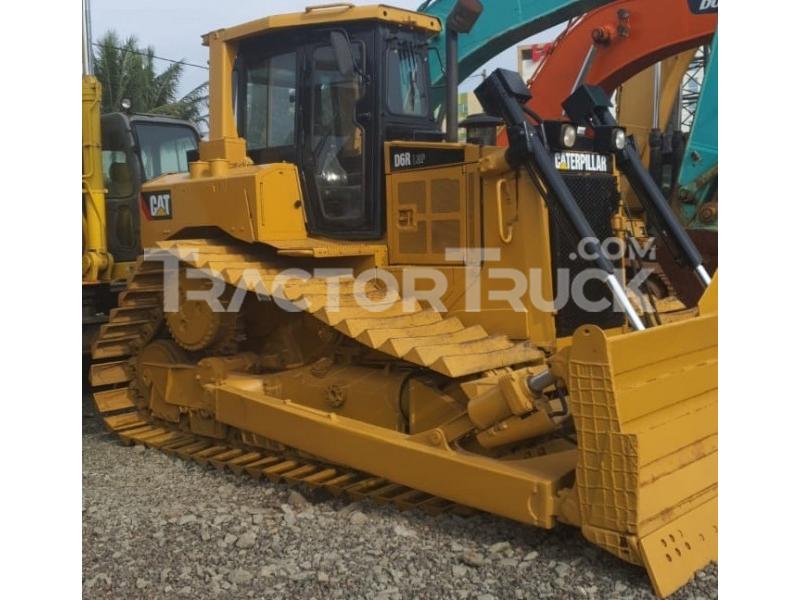

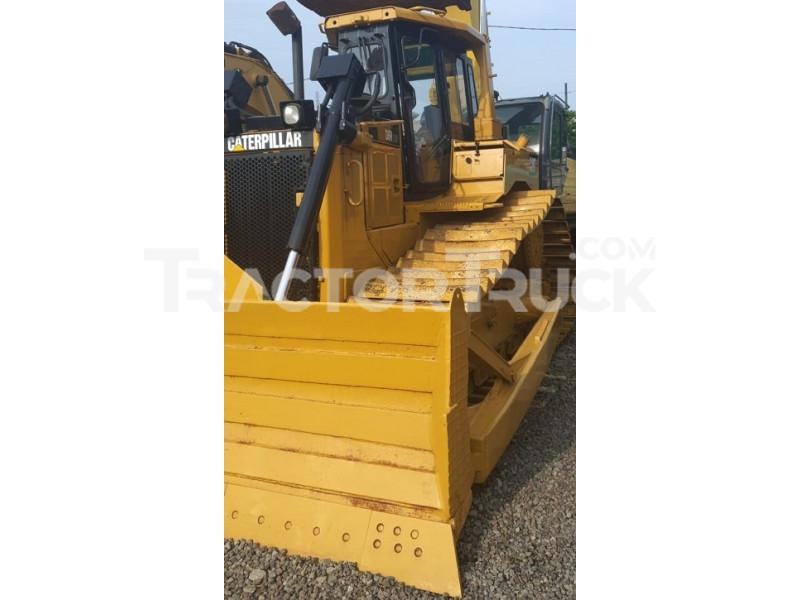

Dijual atas Bulldozer :
- Merek Caterpillar
- Model D6R LGP
- Ex Import / Built Up
- Masuk Indonesia tahun 2018
- Cabin dan Swamp Shoe
- Kondisi siap kerja
- Harga Rp. 1,45 Milyar
Rp. 1,45 M
Technical Specifications
| Length W/ Blade | 5465.1 mm |
|---|---|
| Width Over Tracks | 3142.5 mm |
| Height To Top Of Cab | 3246.1 mm |
| Length Of Track On Ground | 3243.1 mm |
| Ground Clearance | 435.9 mm |
| Length W/Blade | 4248.9 mm |
| Track Gauge | 2209.8 mm |
| Standard Shoe Size | 915.2 mm |
| Number Of Shoes Per Side | 45 |
| Ground Pressure | 34.1 kPa |
| Ground Contact Area | 6.4 m2 |
| Number Of Track Rollers Per Side | 8 |
| Track Pitch | 203.2 mm |
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | 3306 |
| Gross Power | 148.4 kw |
| Net Power | 138 kw |
| Power Measured @ | 1900 rpm |
| Displacement | 10.5 L |
| Aspiration | Turbocharged |
| Operating Weight | 20502.4 kg |
| Fuel Capacity | 383.1 L |
| Cooling System Fluid Capacity | 74.2 L |
| Engine Oil Capacity | 27.6 L |
| Hydraulic Fluid Capacity | 76.1 L |
| Powertrain Fluid Capacity | 155.2 L |
| Final Drives Fluid Capacity | 13.6 L |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Transmission Type | Power Shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 11.9 km/h |
| Max Speed - Reverse | 15.3 km/h |
| Pump Type | Piston Style |
| Relief Valve Pressure | 19305.3 kPa |
| Pump Flow Capacity | 190 L/min |
| Width | 3992.9 mm |
| Height | 1102.4 mm |
| Capacity | 3.7 m3 |
| Cutting Depth | 655.3 mm |
