| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

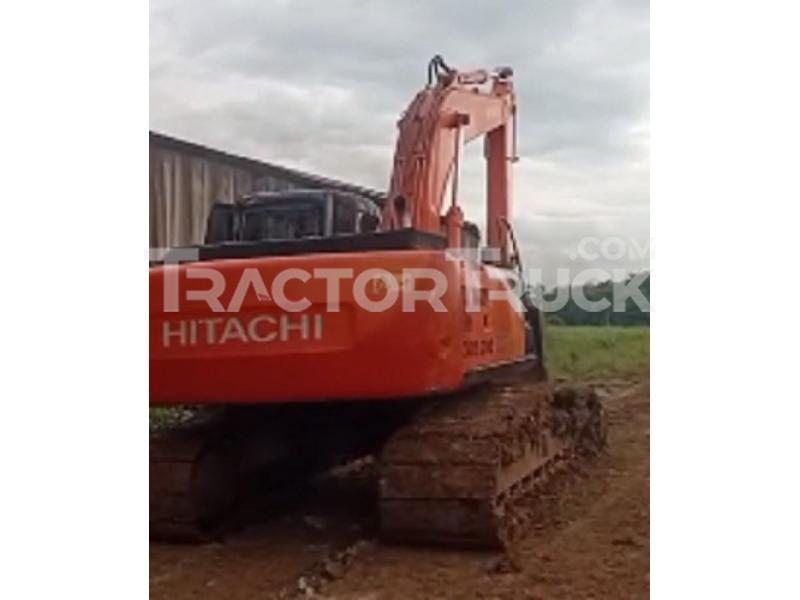

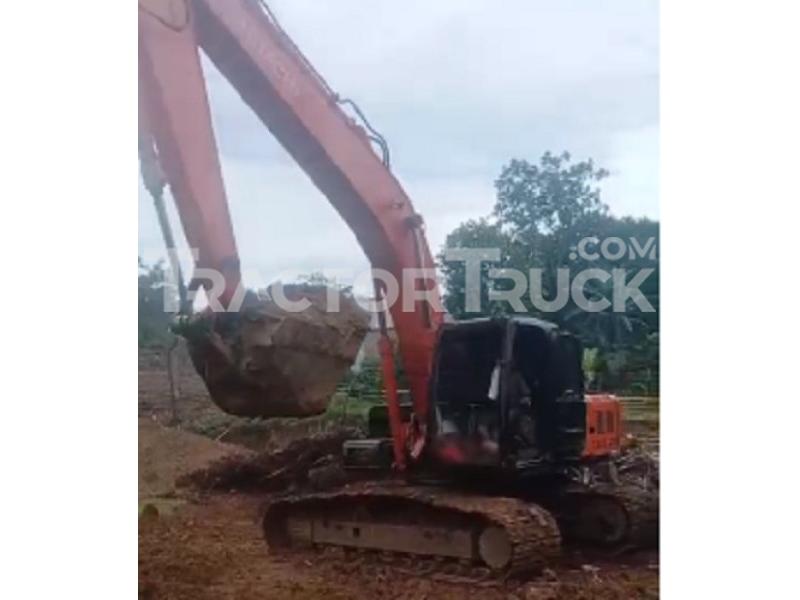

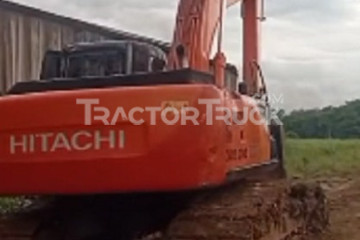

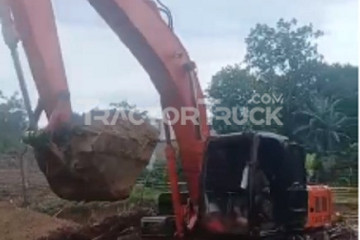

Dijual atas Excavator :
- Merek Hitachi
- Model EX200-5
- Tahun 2000
- Harga Rp. 250 Juta
Rp. 250 Jt
Technical Specifications
| Shipping Length Of Unit | 9622.5 mm |
|---|---|
| Shipping Height Of Unit | 3090.7 mm |
| Max Cutting Height | 9171.4 mm |
| Max Loading Height | 6391.7 mm |
| Max Reach Along Ground | 9080 mm |
| Max Vertical Wall Digging Depth | 5142 mm |
| Max Digging Depth | 5980.2 mm |
| Boom/Stick Option (Hex) 1 | Boom 18'8" (5680mm) / Stick 7'3" (2220mm) |
| Shipping Length Of Unit | 9500.6 mm |
| Max Cutting Height | 9601.2 mm |
| Shipping Height Of Unit | 2971.8 mm |
| Max Loading Height | 6781.8 mm |
| Max Reach Along Ground | 9750.6 mm |
| Max Vertical Wall Digging Depth | 6050.3 mm |
| Max Digging Depth | 6672.1 mm |
| Boom/Stick Option (Hex) 2 | Boom 18'8" (5680mm) / Stick 9'7" (2910mm) |
| Shipping Length Of Unit | 9461 mm |
| Max Cutting Height | 10223 mm |
| Max Loading Height | 7412.7 mm |
| Shipping Height Of Unit | 3550.9 mm |
| Max Reach Along Ground | 11100.8 mm |
| Max Vertical Wall Digging Depth | 7540.8 mm |
| Max Digging Depth | 8162.5 mm |
| Boom/Stick Option (Hex) 3 | Boom 18'8" (5680mm) / Stick 14'6" (4410mm) |
| Ground Clearance | 451.1 mm |
| Height To Top Of Cab | 2871.2 mm |
| Width To Outside Of Tracks | 2801.1 mm |
| Length Of Track On Ground | 3371.1 mm |
| Tail Swing Radius | 2752.3 mm |
| Removal Counterweight Clearance | 1030.2 mm |
| Track Gauge | 2200.7 mm |
| Shoe Size | 600.2 mm |
| Number Of Track Rollers Per Side | 7 |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 5.5 km/h |
| Ground Pressure | 42.1 kPa |
| Number Of Shoes Per Side | 46 |
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | A-6BG1T |
| Net Power | 98.4 kw |
| Power Measured @ | 1950 rpm |
| Max Torque | 461.1 Nm |
| Aspiration | Turbocharged |
| Displacement | 6.5 L |
| Torque Measured @ | 1600 rpm |
| Operating Weight | 18824.1 kg |
| Fuel Capacity | 310 L |
| Cooling System Fluid Capacity | 23.1 L |
| Hydraulic System Fluid Capacity | 200.2 L |
| Engine Oil Capacity | 25.4 L |
| Swing Drive Fluid Capacity | 8.3 L |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 34335.9 kPa |
| Hydraulic Pump Flow Capacity | 370.2 L/min |
| Swing Speed | 13.9 rpm |
| Reference Bucket Capacity | 0.8 m3 |
| Minimum Bucket Capacity | 0.5 m3 |
| Maximum Bucket Capacity | 1.2 m3 |
