| Kondisi | Used |
|---|---|
| Lokasi | BANTEN |

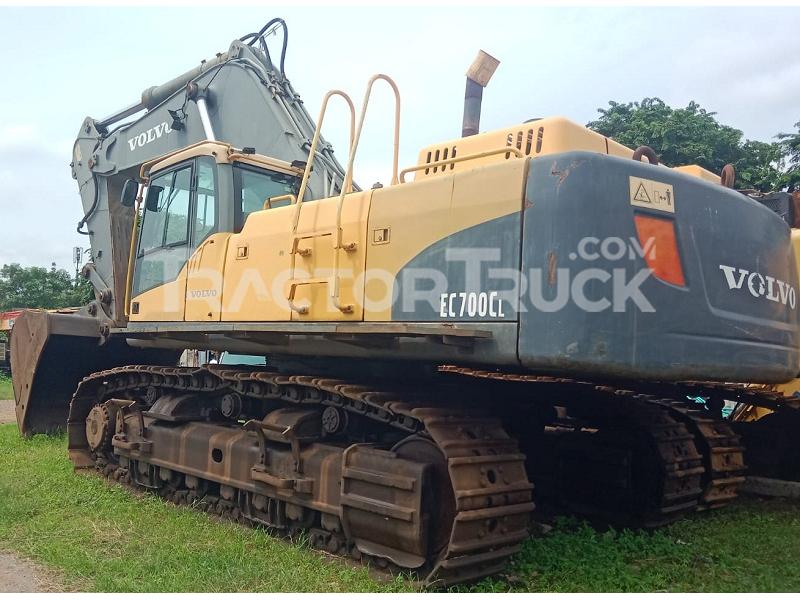

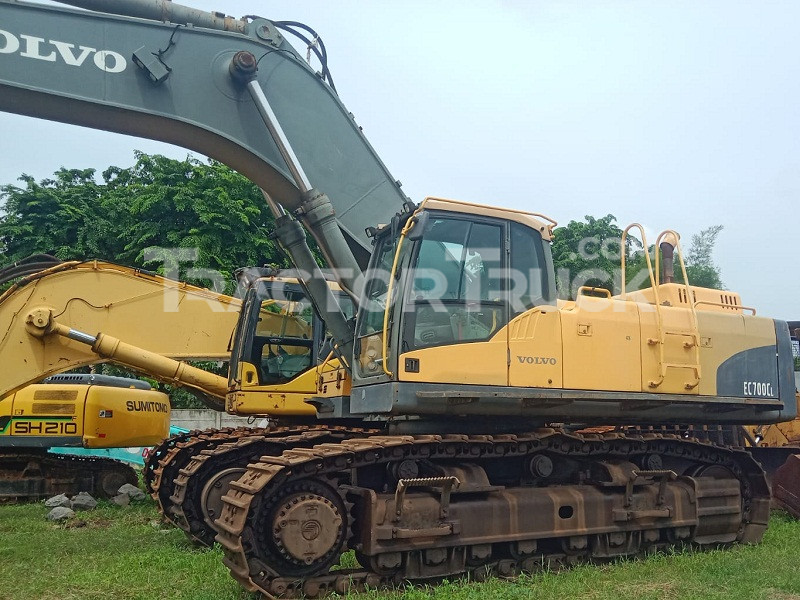

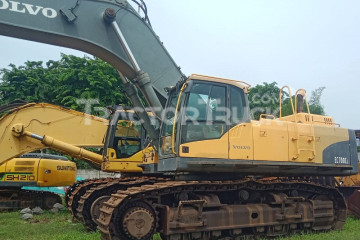

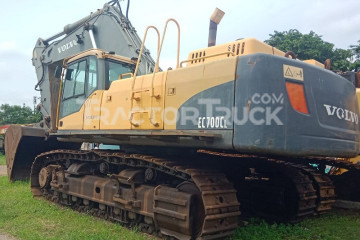

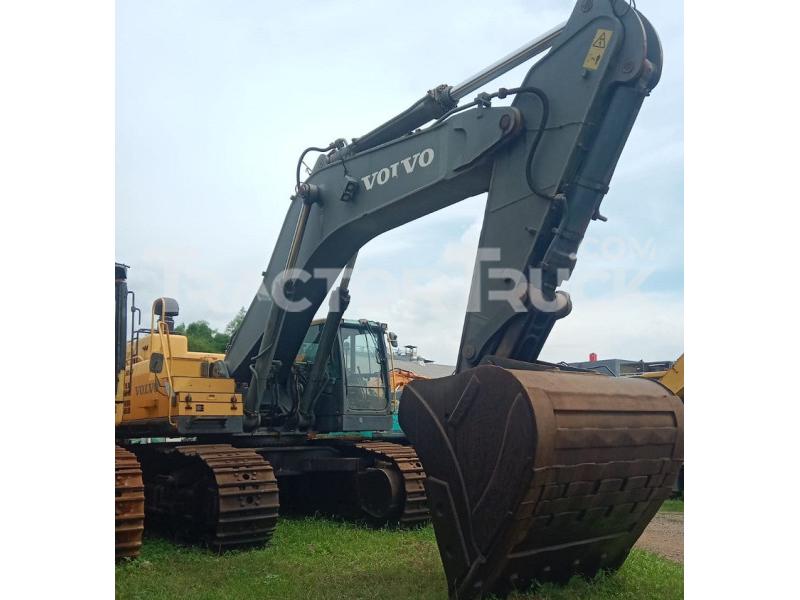

Dijual atas Excavator :
- Merek Volvo
- Model EC700CL
- Tahun 2012
- Harga Rp. Milyar
Rp. Call
Technical Specifications
| Shipping Length Of Unit | 12201.1 mm |
|---|---|
| Shipping Height Of Unit | 4855.5 mm |
| Max Cutting Height | 10981.9 mm |
| Max Loading Height | 6961.6 mm |
| Max Reach Along Ground | 11201.4 mm |
| Max Vertical Wall Digging Depth | 5065.8 mm |
| Max Digging Depth | 7251.2 mm |
| Boom/Stick Option (Hex) 1 | Boom 21'8" (6600mm)/Stick 9'6" (2900mm) |
| Shipping Length Of Unit | 13322.8 mm |
| Max Cutting Height | 12490.7 mm |
| Shipping Height Of Unit | 4660.4 mm |
| Max Loading Height | 8412.5 mm |
| Max Reach Along Ground | 12335.3 mm |
| Max Vertical Wall Digging Depth | 6781.8 mm |
| Max Digging Depth | 7757.2 mm |
| Boom/Stick Option (Hex) 2 | Boom 25'3" (7700mm)/Stick 9'6" (2900mm) |
| Shipping Length Of Unit | 13222.2 mm |
| Max Cutting Height | 12621.8 mm |
| Max Loading Height | 8610.6 mm |
| Shipping Height Of Unit | 4602.5 mm |
| Max Reach Along Ground | 12911.3 mm |
| Max Vertical Wall Digging Depth | 7251.2 mm |
| Max Digging Depth | 8400.3 mm |
| Boom/Stick Option (Hex) 3 | Boom 25'3" (7700mm)/Stick 11'8" (3550mm) |
| Shipping Length Of Unit | 13170.4 mm |
| Shipping Height Of Unit | 4953 mm |
| Max Cutting Height | 12941.8 mm |
| Max Loading Height | 8930.6 mm |
| Max Reach Along Ground | 13542.3 mm |
| Max Digging Depth | 9055.6 mm |
| Max Vertical Wall Dig Depth | 7857.7 mm |
| Boom/Stick Option (Hex) 4 | Boom 25'3" (7700mm)/Stick 13'9" (4200mm) |
| Max Cutting Height | 13420.3 mm |
| Max Loading Height | 9400 mm |
| Max Reach Along Ground | 14502.4 mm |
| Max Digging Depth | 10055.4 mm |
| Boom/Stick Option (Hex) 5 | Boom 25'3" (7700mm)/Stick 17'1" (5200mm) |
| Max Vertical Wall Dig Depth | 8790.4 mm |
| Ground Clearance | 859.5 mm |
| Height To Top Of Cab | 3520.4 mm |
| Width To Outside Of Tracks | 4288.5 mm |
| Length Of Track On Ground | 4751.8 mm |
| Tail Swing Radius | 4090.4 mm |
| Removal Counterweight Clearance | 1508.8 mm |
| Track Gauge | 3352.8 mm |
| Shoe Size | 900.2 mm |
| Number Of Carrier Rollers Per Side | 3 |
| Max Travel Speed | 4.6 km/h |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 75.2 kPa |
| Number Of Shoes Per Side | 48 |
| Drawbar Pull | 46189.3 kg |
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D16E EAE3 |
| Net Power | 316.2 kw |
| Gross Power | 346 kw |
| Power Measured @ | 1800 rpm |
| Max Torque | 2250.7 Nm |
| Displacement | 16.1 L |
| Aspiration | Turbocharged and Intercooled |
| Torque Measured @ | 1350 rpm |
| Operating Weight | 71699.3 kg |
| Fuel Capacity | 840.4 L |
| Cooling System Fluid Capacity | 65.1 L |
| Hydraulic System Fluid Capacity | 655.3 L |
| Engine Oil Capacity | 52.2 L |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 12.1 L |
| Alternator Supplied Amperage | 80 amps |
| Hydraulic System Relief Valve Pressure | 34335.9 kPa |
| Hydraulic Pump Flow Capacity | 870.6 L/min |
| Swing Speed | 6.7 rpm |
| Swing Torque | 0 Nm |
