| Kondisi | Used |
|---|---|
| Lokasi | JAWA BARAT |

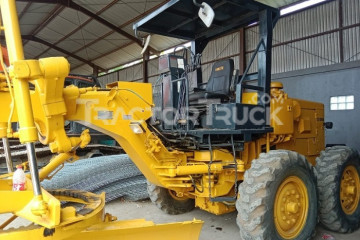

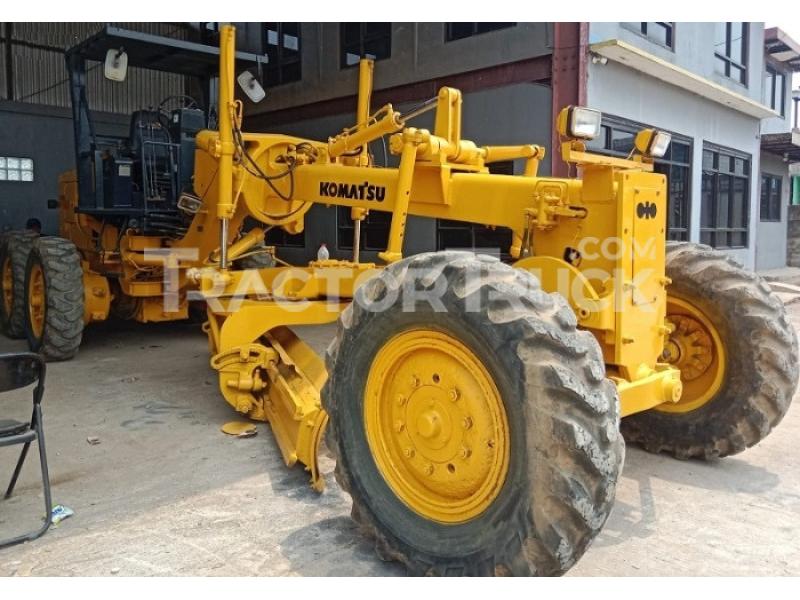

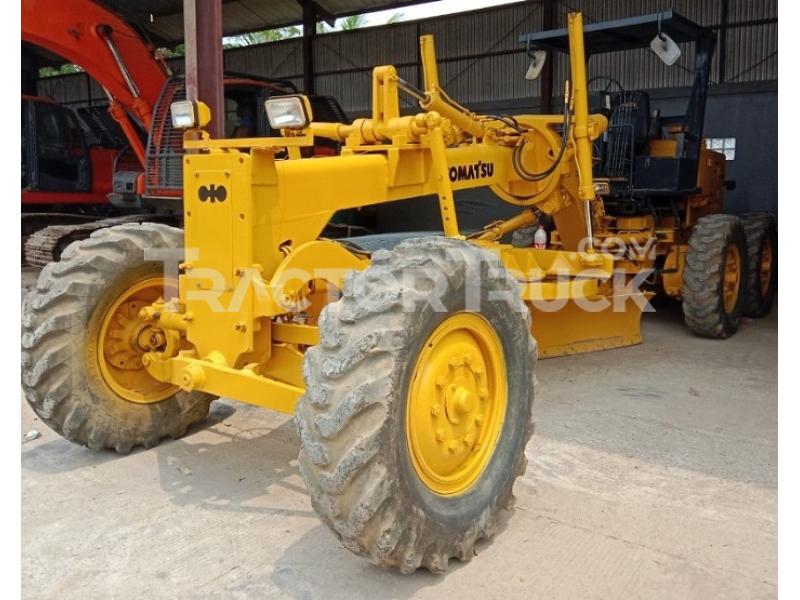

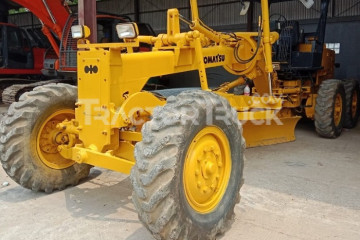

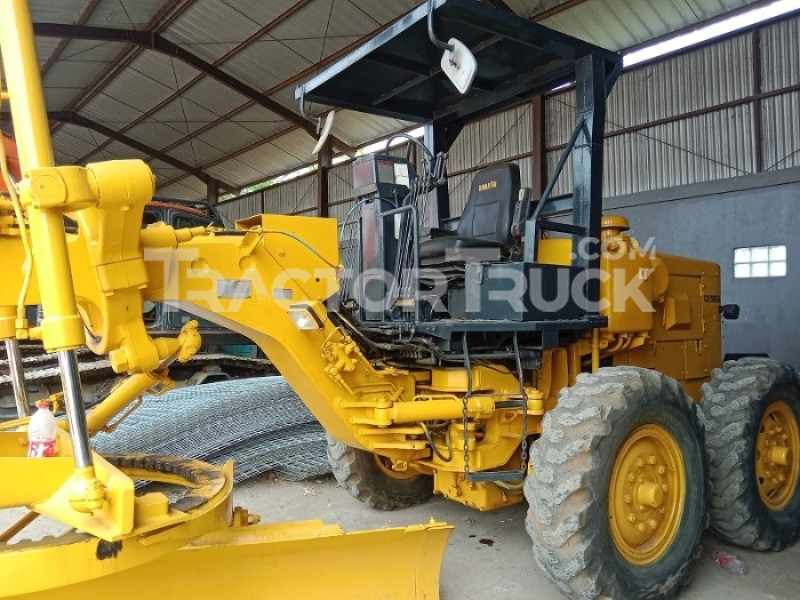

Dijual atas Motor Grader:
- Merek Komatsu
- Model GD505A-2
- Ex Import / Built Up
- Unit siap kerja
- Harga Rp. 550 Juta
Rp. 550 Jt
Technical Specifications
| Overall Length | 7921.8 mm |
|---|---|
| Width Over Tires | 2337.8 mm |
| Wheelbase | 5782.1 mm |
| Rear Ground Clearance | 350.5 mm |
| Tandem Axle Wheelbase | 1505.7 mm |
| Front Ground Clearance | 551.7 mm |
| Blade Base | 2542 mm |
| Height To Top Of Isomount Cab | 2776.7 mm |
| Engine Make | 2238 |
| Engine Model | S6D105-1 |
| Net Power Gear 5-6 | 96.9 kw |
| Max Power | 96.9 kw |
| Net Torque Gears 5-6 | 467.8 Nm |
| Displacement | 6.5 L |
| Aspiration | turbocharged |
| Std Operation Weight - Front Axle | 2960 kg |
| Std Operation Weight - Rear Axle | 7920 kg |
| Std Operation Weight - Total | 10880 kg |
| Tire Size | 13.00-24-8PR |
| Turning Radius | 6614.2 mm |
| Transmission Type | Hydroshift |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 6 |
| Max Speed - Forward | 43.5 km/h |
| Max Speed - Reverse | 45.1 km/h |
| Wheel Lean | 20 degrees |
| Oscillation - Total | 30 degrees |
| Ground Clearance | 579.1 mm |
| Moldboard Width | 3718.6 mm |
| Moldboard Height | 655.3 mm |
| Moldboard Thickness | 20.3 mm |
| Max Depth Of Cut | 505.5 mm |
| Max Reach Outside Tires - Left | 2052.3 mm |
| Max Reach Outside Tires - Right | 2001.5 mm |
| Max Lift Above Ground | 431.8 mm |
